Circuit Termination issue when connected to a rear port with N front ports #2863

New Issue
Closed
opened 2025-12-29 18:22:54 +01:00 by adam · 5 comments
adam commented 2025-12-29 18:22:54 +01:00
Owner
Copy Link

Originally created by @laguyle on GitHub (Sep 11, 2019).

Environment

  • Python version: 3.6.7
  • NetBox version: 2.6.3

Steps to Reproduce

  1. Connect A side and Z side of a circuit to a rear port of a device on both side with N front ports associated (in our case a multiplexer)
  2. Connect front port 1 of the multiplexer on side A to an interface 1 of a device X
  3. Connect front port 1 of the multiplexer on side Z to an interface 1 of a device Y
  4. Connect front port 2 of the multiplexer on side A to an interface 2 of a device X
  5. Connect front port 2 of the multiplexer on side Z to an interface 2 of a device Y

Here is a network diagram to understand our case:


Expected Behavior

We should see interfaces 1 and 2 of device X connected to interfaces 1 and 2 of device Y through the circuit.

Observed Behavior

Only interfaces 1 of devices X and Y are well linked through the circuit.
Interfaces 2 are not totally linked.
I supposed it's due to the fact that when we link the first front port of each mux to interfaces 1 of devices X and Y, terminations of the circuit is moved to Device X - port 1 on A side and Device Y - port 1 on Z side.
I think terminations of the circuit should always stay as the first port or interface it is linked, in our case the rear port of each MUX.

Originally created by @laguyle on GitHub (Sep 11, 2019). ### Environment * Python version: 3.6.7 * NetBox version: 2.6.3 ### Steps to Reproduce 1. Connect A side and Z side of a circuit to a rear port of a device on both side with N front ports associated (in our case a multiplexer) 2. Connect front port 1 of the multiplexer on side A to an interface 1 of a device X 3. Connect front port 1 of the multiplexer on side Z to an interface 1 of a device Y 4. Connect front port 2 of the multiplexer on side A to an interface 2 of a device X 5. Connect front port 2 of the multiplexer on side Z to an interface 2 of a device Y Here is a network diagram to understand our case: ![image](https://user-images.githubusercontent.com/39376910/64680154-880c0380-d47d-11e9-9763-d7a048750b7c.png) ### Expected Behavior We should see interfaces 1 and 2 of device X connected to interfaces 1 and 2 of device Y through the circuit. ### Observed Behavior Only interfaces 1 of devices X and Y are well linked through the circuit. Interfaces 2 are not totally linked. I supposed it's due to the fact that when we link the first front port of each mux to interfaces 1 of devices X and Y, terminations of the circuit is moved to Device X - port 1 on A side and Device Y - port 1 on Z side. I think terminations of the circuit should always stay as the first port or interface it is linked, in our case the rear port of each MUX.
adam added the status: duplicate label 2025-12-29 18:22:54 +01:00
adam closed this issue 2025-12-29 18:22:55 +01:00
adam commented 2025-12-29 18:22:55 +01:00
Author
Owner
Copy Link

@wols commented on GitHub (Oct 8, 2019):

NetBox version: 2.6.5
I wanted to adjust the config, but get the error message when connecting the MUX rear ports:
Side A has 1 positions and rear has 2. Both terminations must have the same number of positions.

My MUX (X side):

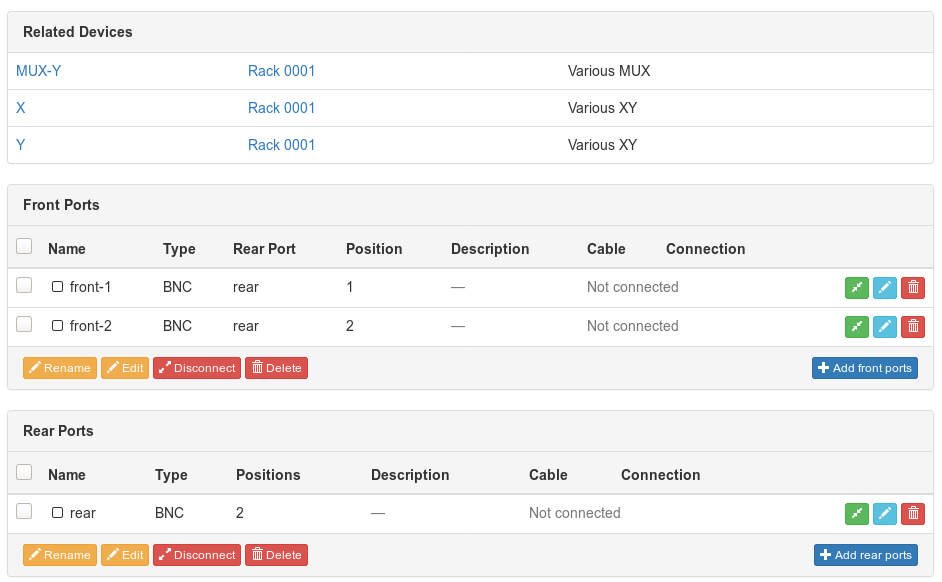

mux-x

This constellation is NOT a "Y junction". You should create the MUX as device with Interfaces.

@wols commented on GitHub (Oct 8, 2019): NetBox version: 2.6.5 I wanted to adjust the config, but get the error message when connecting the MUX rear ports: `Side A has 1 positions and rear has 2. Both terminations must have the same number of positions.` My MUX (X side): ![mux-x](https://user-images.githubusercontent.com/764167/66390137-4f9f0d00-e9ca-11e9-8c75-ff3f16e9a821.png) This constellation is NOT a "Y junction". You should create the MUX as device with _Interfaces_.
adam commented 2025-12-29 18:22:55 +01:00
Author
Owner
Copy Link

@zelfix commented on GitHub (Oct 9, 2019):

I have the same error, as a result, I have to use interfaces on the passive DWDM device instead of rear and front physical ports.

@zelfix commented on GitHub (Oct 9, 2019): I have the same error, as a result, I have to use interfaces on the passive DWDM device instead of rear and front physical ports.
adam commented 2025-12-29 18:22:56 +01:00
Author
Owner
Copy Link

@wols commented on GitHub (Oct 9, 2019):

Suggestion: if you bring all interfaces to one vlan(group) you can see them as vlan members (vlan role: doc) ;-)

@wols commented on GitHub (Oct 9, 2019): Suggestion: if you bring all interfaces to one vlan(group) you can see them as vlan members (vlan role: doc) ;-)
adam commented 2025-12-29 18:22:56 +01:00
Author
Owner
Copy Link

@laguyle commented on GitHub (Oct 10, 2019):

I don't want to define interfaces on my DWDM devices, this doesn't make sense.
The functionnality to associate several front ports to one rear port is exactly what we need.

But I think there is a limitation somewhere in the code that requires that a rear port has to be DIRECTLY connected to a rear port of another device with exactly the same number of front ports on each devices.
But in our case, rear ports are not directly connected because we want to insert a circuit between them.

@laguyle commented on GitHub (Oct 10, 2019): I don't want to define interfaces on my DWDM devices, this doesn't make sense. The functionnality to associate several front ports to one rear port is exactly what we need. But I think there is a limitation somewhere in the code that requires that a rear port has to be DIRECTLY connected to a rear port of another device with exactly the same number of front ports on each devices. But in our case, rear ports are not directly connected because we want to insert a circuit between them.
adam commented 2025-12-29 18:22:56 +01:00
Author
Owner
Copy Link

@jeremystretch commented on GitHub (Oct 23, 2019):

Just realized this is the same issue as described in #3288

@jeremystretch commented on GitHub (Oct 23, 2019): Just realized this is the same issue as described in #3288
