Trace functionality not shown bridge or wireless link #5867

New Issue
Closed
opened 2025-12-29 19:33:38 +01:00 by adam · 2 comments
adam commented 2025-12-29 19:33:38 +01:00
Owner
Copy Link

Originally created by @Abulhallaj on GitHub (Jan 3, 2022).

NetBox version

v3.1.3

Python version

3.8

Steps to Reproduce

We have some wireless radio devices that connect sites. in every site the LAN interfaces on this devices is connected to Switch and documented, also WLAN interfaces are connected together via wireless link. In every device we create a bridge1 interface and bridged the WLAN and LAN interface into it.

Expected Behavior

------------------
|                |
|      SW01      |
|                |
-----| LAN |------
        |
        | Cable
        |
-----| LAN |------
|                |  \
|WirelessDevice01|   bridge1
|                |  /
-----| WLAN |-----
        |
        | Wireless Link
        |
-----| WLAN |-----
|                |  \
|WirelessDevice02|   bridge1
|                |  /
-----| LAN |------
        |
        | Cable
        |
-----| LAN |------
|                |
|      SW02      |
|                |
------------------

Observed Behavior

The Cable trace just shown the Cable path and not the bridge area or wireless link was shown in trace as excepted. wireless link can traced exclusively but just shown wireless link.

Originally created by @Abulhallaj on GitHub (Jan 3, 2022). ### NetBox version v3.1.3 ### Python version 3.8 ### Steps to Reproduce We have some wireless radio devices that connect sites. in every site the **LAN** interfaces on this devices is connected to Switch and documented, also **WLAN** interfaces are connected together via wireless link. In every device we create a **bridge1** interface and bridged the **WLAN** and **LAN** interface into it. ### Expected Behavior ``` ------------------ | | | SW01 | | | -----| LAN |------ | | Cable | -----| LAN |------ | | \ |WirelessDevice01| bridge1 | | / -----| WLAN |----- | | Wireless Link | -----| WLAN |----- | | \ |WirelessDevice02| bridge1 | | / -----| LAN |------ | | Cable | -----| LAN |------ | | | SW02 | | | ------------------ ``` ### Observed Behavior The Cable trace just shown the Cable path and not the bridge area or wireless link was shown in trace as excepted. wireless link can traced exclusively but just shown wireless link.
adam closed this issue 2025-12-29 19:33:38 +01:00
adam commented 2025-12-29 19:33:38 +01:00
Author
Owner
Copy Link

@jeremystretch commented on GitHub (Jan 3, 2022):

This is expected behavior. Any number of interfaces can be attached to a bridge group, so the cable trace cannot assume the next hop. If you'd like to enable tracing directly across these, you can bridge the LAN and WLAN interfaces to one another directly.

@jeremystretch commented on GitHub (Jan 3, 2022): This is expected behavior. Any number of interfaces can be attached to a bridge group, so the cable trace cannot assume the next hop. If you'd like to enable tracing directly across these, you can bridge the LAN and WLAN interfaces to one another directly.
adam commented 2025-12-29 19:33:39 +01:00
Author
Owner
Copy Link

@Abulhallaj commented on GitHub (Jan 4, 2022):

@jeremystretch

you can bridge the LAN and WLAN interfaces to one another directly.

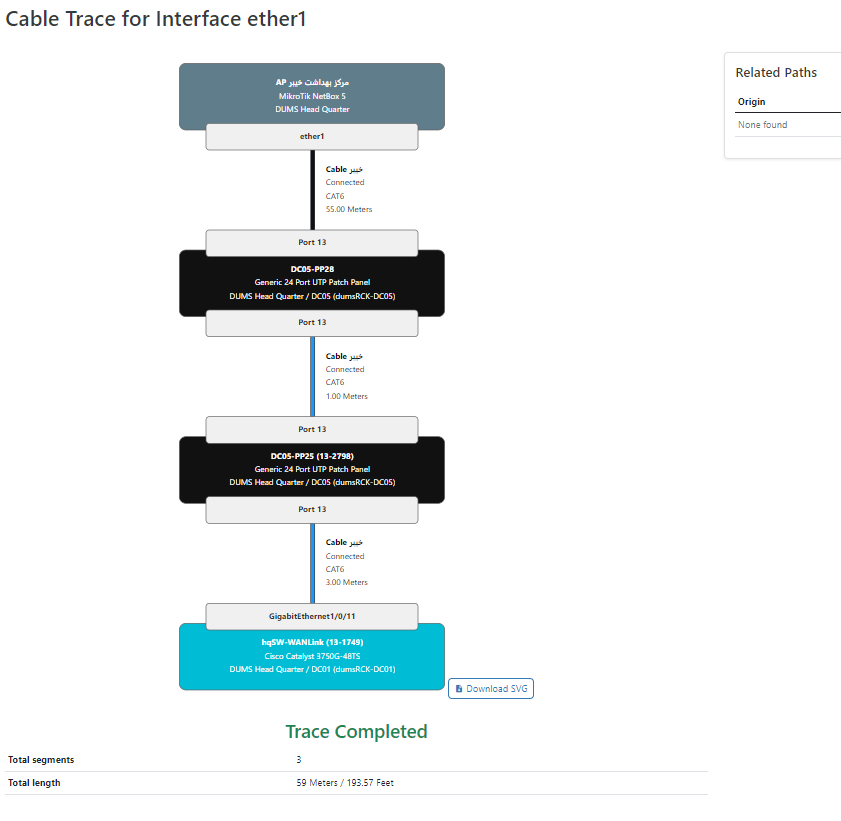

I also do that and that's not work

@Abulhallaj commented on GitHub (Jan 4, 2022): @jeremystretch > you can bridge the LAN and WLAN interfaces to one another directly. I also do that and that's not work ![image](https://user-images.githubusercontent.com/20490198/148009624-d7c0de06-deba-4a9f-91c3-5b5f60411635.png) ![image](https://user-images.githubusercontent.com/20490198/148009669-6fd1445c-2a99-497e-8237-4b43a0f6c3d8.png) ![image](https://user-images.githubusercontent.com/20490198/148009733-2bbdcd8b-4b18-4ea2-bbc4-7c6f0fe0b681.png)
