Visibility of when opposite rack face is occupied #5180

New Issue
Closed
opened 2025-12-29 19:25:09 +01:00 by adam · 8 comments
adam commented 2025-12-29 19:25:09 +01:00
Owner
Copy Link

Originally created by @candlerb on GitHub (Aug 14, 2021).

NetBox version

v2.11.11 and v3.0-beta2

Feature type

Change to existing functionality

Proposed functionality

This is regarding rack elevations.

Currently, when a half-depth device is installed in the front face, the rear face doesn't show any indication of this. I would like a way to be able to observe, visually, when the opposite face is occupied.

If the front is occupied with with a full-depth device, the rear shows either the rear image, or a red striped pattern with the device name - and that's fine.

What I want is if the front is occupied with a half-depth device, at least something is visible. This could be a different kind of hatching, for example.

Use case

To be able to distinguish visually between:

  • a rack unit which is completely unoccupied
  • a rack unit which has the opposite face occupied (and therefore can only take a half-depth device on this side)

This in turn helps easily identify which spaces are usable for a full-depth device.

Database changes

None

External dependencies

None

Originally created by @candlerb on GitHub (Aug 14, 2021). ### NetBox version v2.11.11 and v3.0-beta2 ### Feature type Change to existing functionality ### Proposed functionality This is regarding rack elevations. Currently, when a half-depth device is installed in the front face, the rear face doesn't show any indication of this. I would like a way to be able to observe, visually, when the opposite face is occupied. If the front is occupied with with a full-depth device, the rear shows either the rear image, or a red striped pattern with the device name - and that's fine. What I want is if the front is occupied with a half-depth device, at least *something* is visible. This could be a different kind of hatching, for example. ### Use case To be able to distinguish visually between: * a rack unit which is completely unoccupied * a rack unit which has the opposite face occupied (and therefore can only take a half-depth device on this side) This in turn helps easily identify which spaces are usable for a full-depth device. ### Database changes None ### External dependencies None
adam added the type: featurepending closurestatus: under review labels 2025-12-29 19:25:09 +01:00
adam closed this issue 2025-12-29 19:25:09 +01:00
adam commented 2025-12-29 19:25:09 +01:00
Author
Owner
Copy Link

@candlerb commented on GitHub (Aug 14, 2021):

There is a CSS class "occupied", and it might be intended for this purpose, but I cannot see how it can ever be activated. Looking at the source code:

            elif device:   <<< (1)
                # Devices which the user does not have permission to view are rendered only as unavailable space
                drawing.add(drawing.rect(start_cordinates, end_cordinates, class_='blocked'))
            else:
                # Draw shallow devices, reservations, or empty units
                class_ = 'slot'
                reservation = reserved_units.get(unit["id"])
                if device:    <<< (2)
                    class_ += ' occupied'

I cannot see how the "if device" at (2) can ever be true, because if it were, the branch at (1) would have been taken.

(I linked to the Netbox v3 beta code, but the same code is in v2.11.11 in netbox/dcim/elevations.py)

@candlerb commented on GitHub (Aug 14, 2021): There is a CSS class "occupied", and it might be intended for this purpose, but I cannot see how it can ever be activated. Looking at the [source code](https://github.com/netbox-community/netbox/blob/v3.0-beta2/netbox/dcim/svg.py#L207-L215): ``` elif device: <<< (1) # Devices which the user does not have permission to view are rendered only as unavailable space drawing.add(drawing.rect(start_cordinates, end_cordinates, class_='blocked')) else: # Draw shallow devices, reservations, or empty units class_ = 'slot' reservation = reserved_units.get(unit["id"]) if device: <<< (2) class_ += ' occupied' ``` I cannot see how the "if device" at (2) can ever be true, because if it were, the branch at (1) would have been taken. (I linked to the Netbox v3 beta code, but the same code is in v2.11.11 in `netbox/dcim/elevations.py`)
adam commented 2025-12-29 19:25:10 +01:00
Author
Owner
Copy Link

@candlerb commented on GitHub (Aug 15, 2021):

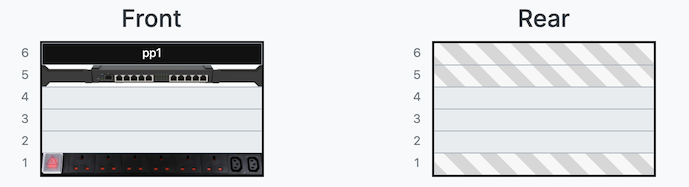

If the intention is that class="occupied" is used when the opposite face is occupied, then this proof-of-concept makes it work that way:

--- a/netbox/dcim/svg.py
+++ b/netbox/dcim/svg.py
@@ -173,7 +173,7 @@ class RackElevationSVG:
         unit_cursor = 0
         for u in elevation:
             o = other[unit_cursor]
-            if not u['device'] and o['device'] and o['device'].device_type.is_full_depth:
+            if not u['device'] and o['device']:
                 u['device'] = o['device']
                 u['height'] = 1
             unit_cursor += u.get('height', 1)
@@ -218,7 +218,7 @@ class RackElevationSVG:
                 self._draw_device_front(drawing, device, start_cordinates, end_cordinates, text_cordinates)
             elif device and device.device_type.is_full_depth and device.pk in self.permitted_device_ids:
                 self._draw_device_rear(drawing, device, start_cordinates, end_cordinates, text_cordinates)
-            elif device:
+            elif device and device.face == face:
                 # Devices which the user does not have permission to view are rendered only as unavailable space
                 drawing.add(drawing.rect(start_cordinates, end_cordinates, class_='blocked'))
             else:


I won't provide that as a PR until it has been confirmed what the intended purpose of "occupied" is.

EDIT: if a unit is both "occupied" and "reserved", both classes are applied. In my browser (Chrome) it renders as if only "occupied" - and oddly, it doesn't make a difference if I swap the classes around. I wonder if it would be better to render such cases as "reserved", as it's still possible to reserve space for a half-depth device when the other face is occupied. That would be an easy change in the Python, or it's probably possible in the CSS somehow.

@candlerb commented on GitHub (Aug 15, 2021): If the intention is that `class="occupied"` is used when the opposite face is occupied, then this proof-of-concept makes it work that way: ``` --- a/netbox/dcim/svg.py +++ b/netbox/dcim/svg.py @@ -173,7 +173,7 @@ class RackElevationSVG: unit_cursor = 0 for u in elevation: o = other[unit_cursor] - if not u['device'] and o['device'] and o['device'].device_type.is_full_depth: + if not u['device'] and o['device']: u['device'] = o['device'] u['height'] = 1 unit_cursor += u.get('height', 1) @@ -218,7 +218,7 @@ class RackElevationSVG: self._draw_device_front(drawing, device, start_cordinates, end_cordinates, text_cordinates) elif device and device.device_type.is_full_depth and device.pk in self.permitted_device_ids: self._draw_device_rear(drawing, device, start_cordinates, end_cordinates, text_cordinates) - elif device: + elif device and device.face == face: # Devices which the user does not have permission to view are rendered only as unavailable space drawing.add(drawing.rect(start_cordinates, end_cordinates, class_='blocked')) else: ``` ![image](https://user-images.githubusercontent.com/44789/129472870-8aafb171-d6c4-4c68-b73c-8b8d5a5e5823.png) I won't provide that as a PR until it has been confirmed what the intended purpose of "occupied" is. EDIT: if a unit is both "occupied" and "reserved", both classes are applied. In my browser (Chrome) it renders as if only "occupied" - and oddly, it doesn't make a difference if I swap the classes around. I wonder if it would be better to render such cases as "reserved", as it's still possible to reserve space for a half-depth device when the other face is occupied. That would be an easy change in the Python, or it's probably possible in the CSS somehow.
adam commented 2025-12-29 19:25:10 +01:00
Author
Owner
Copy Link

@jeremystretch commented on GitHub (Aug 16, 2021):

Sounds like a duplicate of #6156?

@jeremystretch commented on GitHub (Aug 16, 2021): Sounds like a duplicate of #6156?
adam commented 2025-12-29 19:25:10 +01:00
Author
Owner
Copy Link

@candlerb commented on GitHub (Aug 16, 2021):

Yes I guess so. However in this case I've actually dug into the code :-)

Do you know what the intended purpose of class="occupied" was? Even though it can never be applied by the current code.

Looking through history, it appears to have been added originally in 31e65a09:

Closes #4940: Added an occupied field to rack unit representations for rack elevation views

But the description in that issue sounds more like the use of "blocked" rather than "occupied":

a need to convey that a particular rack unit is occupied without revealing the specific device occupying it

EDIT: earlier than that, I find 1ec191db ("initial cleanup of rack elevations")

You need to trace the renames through:

  • netbox/dcim/models.py
  • netbox/dcim/models/__init__.py
  • netbox/dcim/elevations.py
  • netbox/dcim/svg.py (v3 only)
@candlerb commented on GitHub (Aug 16, 2021): Yes I guess so. However in this case I've actually dug into the code :-) Do you know what the *intended* purpose of `class="occupied"` was? Even though it can never be applied by the current code. Looking through history, it appears to have been added originally in 31e65a09: > Closes #4940: Added an occupied field to rack unit representations for rack elevation views But the description in that issue sounds more like the use of "blocked" rather than "occupied": > a need to convey that a particular rack unit is occupied without revealing the specific device occupying it EDIT: earlier than that, I find 1ec191db ("initial cleanup of rack elevations") You need to trace the renames through: * `netbox/dcim/models.py` * `netbox/dcim/models/__init__.py` * `netbox/dcim/elevations.py` * `netbox/dcim/svg.py` (v3 only)
adam commented 2025-12-29 19:25:10 +01:00
Author
Owner
Copy Link

@candlerb commented on GitHub (Sep 7, 2021):

@jeremystretch, any comment regarding:

  1. what the original intended purpose of class="occupied" was?
  2. whether it's acceptable to use it now to mean "opposite rack face is populated", given that it's never used at the moment?
@candlerb commented on GitHub (Sep 7, 2021): @jeremystretch, any comment regarding: 1. what the original intended purpose of `class="occupied"` was? 2. whether it's acceptable to use it now to mean "opposite rack face is populated", given that it's never used at the moment?
adam commented 2025-12-29 19:25:11 +01:00
Author
Owner
Copy Link

@candlerb commented on GitHub (Nov 22, 2021):

I would like to add a second feature to this: if a device is half-depth, and it has a rear image, then show the rear image when the opposite face is unoccupied.

At the moment the opposite face shows completely blank, and this original FR is to show some indication that the opposite side was in use. I think that if the device has a rear image, then that's the image that should be used (possibly greyed out, or with some other way to indicate that it's not full depth)

At the moment, as far as I can tell, the rear image is never used for a half-depth device (except when viewing the Device Type of course)

@candlerb commented on GitHub (Nov 22, 2021): I would like to add a second feature to this: if a device is half-depth, and it has a rear image, then show the rear image when the opposite face is unoccupied. At the moment the opposite face shows completely blank, and this original FR is to show *some* indication that the opposite side was in use. I think that if the device has a rear image, then that's the image that should be used (possibly greyed out, or with some other way to indicate that it's not full depth) At the moment, as far as I can tell, the rear image is *never* used for a half-depth device (except when viewing the Device Type of course)
adam commented 2025-12-29 19:25:11 +01:00
Author
Owner
Copy Link

@github-actions[bot] commented on GitHub (Jan 22, 2022):

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. NetBox is governed by a small group of core maintainers which means not all opened issues may receive direct feedback. Please see our contributing guide.

@github-actions[bot] commented on GitHub (Jan 22, 2022): This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. NetBox is governed by a small group of core maintainers which means not all opened issues may receive direct feedback. Please see our [contributing guide](https://github.com/netbox-community/netbox/blob/develop/CONTRIBUTING.md).
adam commented 2025-12-29 19:25:11 +01:00
Author
Owner
Copy Link

@github-actions[bot] commented on GitHub (Mar 31, 2022):

This issue has been automatically closed due to lack of activity. In an effort to reduce noise, please do not comment any further. Note that the core maintainers may elect to reopen this issue at a later date if deemed necessary.

@github-actions[bot] commented on GitHub (Mar 31, 2022): This issue has been automatically closed due to lack of activity. In an effort to reduce noise, please do not comment any further. Note that the core maintainers may elect to reopen this issue at a later date if deemed necessary.
