Script variables inherited from superclass are not included in form rendering #4400

New Issue

adam · 2025-12-29T18:35:37+01:00

adam commented

2025-12-29 18:35:37 +01:00

Originally created by @glennmatthews on GitHub (Dec 23, 2020).

Environment

Python version: 3.7.7
NetBox version: 2.9.11

Steps to Reproduce

Create a Script class which defines one or more variables; subclass this script and add extra variables to the subclass. When accessing the input form for the subclass script, only the added variables are present in the form - the variables inherited from the parent class are missing.

from extras.scripts import Script, StringVar

class SimpleScript(Script):
    class Meta:
        field_order = ["simple_variable"]

    simple_variable = StringVar()

class ExtendedScript(SimpleScript):
    class Meta:
        field_order = ["simple_variable", "extended_variable"]

    extended_variable = StringVar()

Expected Behavior

Both inherited and locally defined variables should be present in the input form. I believe that inherited variables were included in forms prior to commit eaaaaec5a5, as we were using field_order and getattr to look up the variables in _get_vars, instead of __dict__ (which doesn't include inherited attributes).

Observed Behavior

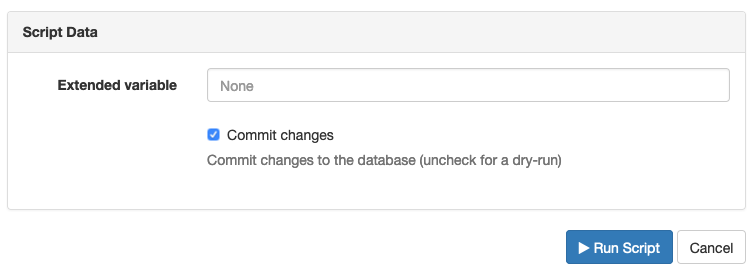

Only variables locally defined on the subclass are included in the input form, regardless of their inclusion in field_order.

Originally created by @glennmatthews on GitHub (Dec 23, 2020).  ### Environment * Python version: 3.7.7 * NetBox version: 2.9.11  ### Steps to Reproduce Create a Script class which defines one or more variables; subclass this script and add extra variables to the subclass. When accessing the input form for the subclass script, only the added variables are present in the form - the variables inherited from the parent class are missing. ```python from extras.scripts import Script, StringVar class SimpleScript(Script): class Meta: field_order = ["simple_variable"] simple_variable = StringVar() class ExtendedScript(SimpleScript): class Meta: field_order = ["simple_variable", "extended_variable"] extended_variable = StringVar() ``` ![image](https://user-images.githubusercontent.com/5603551/103017677-f7422580-4511-11eb-85db-7ea3a6fc4845.png)  ### Expected Behavior Both inherited and locally defined variables should be present in the input form. I believe that inherited variables were included in forms prior to commit eaaaaec5a524c76ff2e76192b2cbea5e7445705d, as we were using `field_order` and `getattr` to look up the variables in `_get_vars`, instead of `__dict__` (which doesn't include inherited attributes).  ### Observed Behavior Only variables locally defined on the subclass are included in the input form, regardless of their inclusion in `field_order`.

adam added the type: feature pending closure status: under review labels 2025-12-29 18:35:37 +01:00

adam closed this issue

2025-12-29 18:35:37 +01:00

adam commented

2025-12-29 18:35:38 +01:00

@glennmatthews commented on GitHub (Dec 23, 2020):

Workaround is to update the script to manually include the parent class's variables, i.e.:

class ExtendedScript(SimpleScript):
    class Meta:
        field_order = ["simple_variable", "extended_variable"]

    simple_variable = SimpleScript.simple_variable
    extended_variable = StringVar()

But it would be better if field_order were respected.

@glennmatthews commented on GitHub (Dec 23, 2020): Workaround is to update the script to manually include the parent class's variables, i.e.: ```python class ExtendedScript(SimpleScript): class Meta: field_order = ["simple_variable", "extended_variable"] simple_variable = SimpleScript.simple_variable extended_variable = StringVar() ``` But it would be better if `field_order` were respected.

adam commented

2025-12-29 18:35:38 +01:00

@drmsoffall commented on GitHub (Dec 24, 2020):

@glennmatthews,
This is a behavior of Python, not of NetBox. Inner classes of a subclass do not automatically inherit from inner classes of a parent class. See https://www.codespeedy.com/understanding-inheritance-in-python-inner-class/ for an example.

You could possibly come up with a more clear way to take advantage of this, like inheriting from the parent class' inner class and then using += instead of =, or some variation thereof.

@drmsoffall commented on GitHub (Dec 24, 2020): @glennmatthews, This is a behavior of Python, not of NetBox. Inner classes of a subclass do not automatically inherit from inner classes of a parent class. See https://www.codespeedy.com/understanding-inheritance-in-python-inner-class/ for an example. You could possibly come up with a more clear way to take advantage of this, like inheriting from the parent class' inner class and then using += instead of =, or some variation thereof.

adam commented

2025-12-29 18:35:39 +01:00

@glennmatthews commented on GitHub (Dec 30, 2020):

Thanks for the comment, but I believe that the behavior of inner classes is not relevant to this issue. simple_variable and extended_variable are not inner classes, and I'm explicitly setting the field_order Meta attribute in ExtendedScript, not inheriting anything from the SimpleScript Meta inner class.

@glennmatthews commented on GitHub (Dec 30, 2020): Thanks for the comment, but I believe that the behavior of inner classes is not relevant to this issue. `simple_variable` and `extended_variable` are not inner classes, and I'm explicitly setting the `field_order` `Meta` attribute in `ExtendedScript`, not inheriting anything from the `SimpleScript` `Meta` inner class.

adam commented

2025-12-29 18:35:39 +01:00

@lampwins commented on GitHub (Jan 19, 2021):

I agree with @glennmatthews, and there is a pretty standard pattern for this in the Django world. Django Rest Framework and Django Filters both use a Metaclass that defines a method to traverse all base classes and collect defined fields for Serialiers and Filtersets, respectively. We could do the same thing for Script variables. See https://github.com/encode/django-rest-framework/blob/master/rest_framework/serializers.py#L281

@lampwins commented on GitHub (Jan 19, 2021): I agree with @glennmatthews, and there is a pretty standard pattern for this in the Django world. Django Rest Framework and Django Filters both use a Metaclass that defines a method to traverse all base classes and collect defined fields for Serialiers and Filtersets, respectively. We could do the same thing for Script variables. See https://github.com/encode/django-rest-framework/blob/master/rest_framework/serializers.py#L281

adam commented

2025-12-29 18:35:39 +01:00

@jeremystretch commented on GitHub (Jan 19, 2021):

Reclassifying this as a proposed feature since the described behavior has never been documented as supported.

This needs a well-formed proposed implementation before any work can proceed.

@jeremystretch commented on GitHub (Jan 19, 2021): Reclassifying this as a proposed feature since the described behavior has never been documented as supported. This needs a well-formed proposed implementation before any work can proceed.

adam commented

2025-12-29 18:35:39 +01:00

@stale[bot] commented on GitHub (Mar 5, 2021):

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. NetBox is governed by a small group of core maintainers which means not all opened issues may receive direct feedback. Please see our contributing guide.

@stale[bot] commented on GitHub (Mar 5, 2021): This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. NetBox is governed by a small group of core maintainers which means not all opened issues may receive direct feedback. Please see our [contributing guide](https://github.com/netbox-community/netbox/blob/develop/CONTRIBUTING.md).

adam commented

2025-12-29 18:35:40 +01:00

@stale[bot] commented on GitHub (Mar 21, 2021):

This issue has been automatically closed due to lack of activity. In an effort to reduce noise, please do not comment any further. Note that the core maintainers may elect to reopen this issue at a later date if deemed necessary.

@stale[bot] commented on GitHub (Mar 21, 2021): This issue has been automatically closed due to lack of activity. In an effort to reduce noise, please do not comment any further. Note that the core maintainers may elect to reopen this issue at a later date if deemed necessary.
