Front Images in Racks not shown when using S3 storage #4035

New Issue

adam · 2025-12-29T18:32:43+01:00

adam commented

2025-12-29 18:32:43 +01:00

Originally created by @ingvaldlorentzen on GitHub (Aug 27, 2020).

Originally assigned to: @jeremystretch on GitHub.

Environment

Python version: 3.7.9
NetBox version: v2.8.9

Steps to Reproduce

Add a Device Type with front and read images using an on-prem S3 storage backend
Add Device of that type to a Rack
View Rack with "Show Images" checked

Expected Behavior

The front and rear images for the device is show in the rack.

Observed Behavior

Only the rear image is show.

The issue seems to be that the front image URL gets the base URL prepended (red line).
Inspecting the front device image from a rack in a browser:

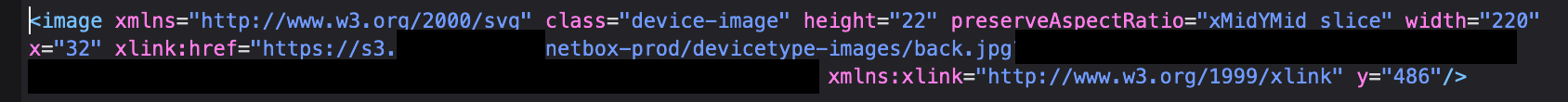

While the back does not prepend the base URL and works as expected:

This seems to be be rooted in the difference between the following lines of code:
https://github.com/netbox-community/netbox/blob/develop/netbox/dcim/elevations.py#L97
and
https://github.com/netbox-community/netbox/blob/develop/netbox/dcim/elevations.py#L110

The _draw_device_rear function simply sets the url to device.device_type.rear_image.url while the _draw_device_front function sets the url to '{}{}'.format(self.base_url, device.device_type.front_image.url)

I'll gladly submit at PR that changes line 97 to work the same as line 110, but would like to hear if there is a reason these differ or if it's just a little bug.

Also I've only tested this with S3 storage backend, so not sure if my suggested change would affect other storage backends or if other storage backends are affected by this bug.
