Display interface type for source and target interfaces in connection screen #3653

New Issue
Closed
opened 2025-12-29 18:30:23 +01:00 by adam · 1 comment
adam commented 2025-12-29 18:30:23 +01:00
Owner
Copy Link

Originally created by @ananace on GitHub (May 7, 2020).

Environment

  • Python version: 3.7.7
  • NetBox version: 2.8.1

Proposed Functionality

The cable connection display currently only shows the direct names of interfaces/ports, it would be useful to also include the type of the interface/port in both the source and the target selection as well.

Use Case

Connecting cables between devices with many different types of connectors - for example mixed SFP/copper NICs - can be confusing when the name doesn't also include the port type information. Including the port types as well would make it more obvious for people which connections would be possible/valid.

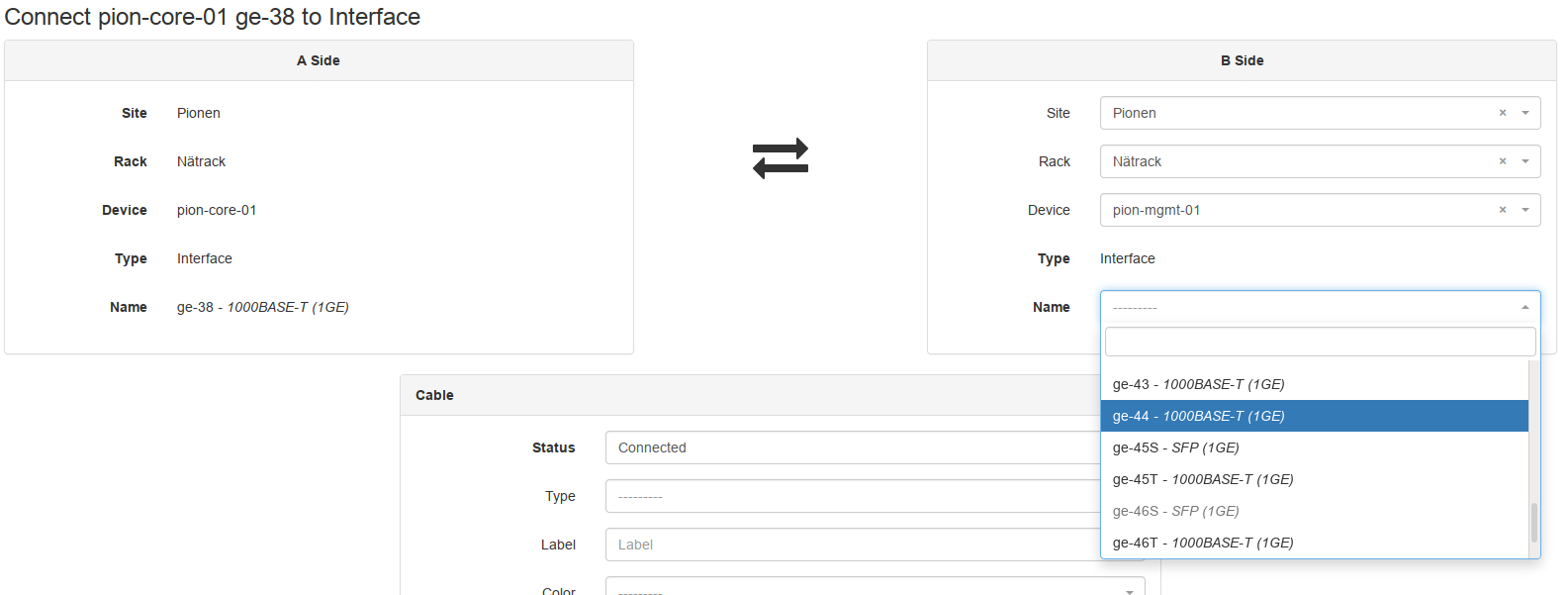

A quick mockup;
Screenshot_20200507_163808-1

Database Changes

External Dependencies

Originally created by @ananace on GitHub (May 7, 2020). <!-- NOTE: IF YOUR ISSUE DOES NOT FOLLOW THIS TEMPLATE, IT WILL BE CLOSED. This form is only for proposing specific new features or enhancements. If you have a general idea or question, please post to our mailing list instead of opening an issue: https://groups.google.com/forum/#!forum/netbox-discuss NOTE: Due to an excessive backlog of feature requests, we are not currently accepting any proposals which significantly extend NetBox's feature scope. Please describe the environment in which you are running NetBox. Be sure that you are running an unmodified instance of the latest stable release before submitting a bug report. --> ### Environment * Python version: 3.7.7<!-- Example: 3.6.9 --> * NetBox version: 2.8.1<!-- Example: 2.7.3 --> <!-- Describe in detail the new functionality you are proposing. Include any specific changes to work flows, data models, or the user interface. --> ### Proposed Functionality The cable connection display currently only shows the direct names of interfaces/ports, it would be useful to also include the type of the interface/port in both the source and the target selection as well. <!-- Convey an example use case for your proposed feature. Write from the perspective of a NetBox user who would benefit from the proposed functionality and describe how. ---> ### Use Case Connecting cables between devices with many different types of connectors - for example mixed SFP/copper NICs - can be confusing when the name doesn't also include the port type information. Including the port types as well would make it more obvious for people which connections would be possible/valid. A quick mockup; ![Screenshot_20200507_163808-1](https://user-images.githubusercontent.com/534460/81307866-6a7d5100-9081-11ea-9de4-34b4b21886da.png) <!-- Note any changes to the database schema necessary to support the new feature. For example, does the proposal require adding a new model or field? (Not all new features require database changes.) ---> ### Database Changes <!-- List any new dependencies on external libraries or services that this new feature would introduce. For example, does the proposal require the installation of a new Python package? (Not all new features introduce new dependencies.) --> ### External Dependencies
adam closed this issue 2025-12-29 18:30:23 +01:00
adam commented 2025-12-29 18:30:23 +01:00
Author
Owner
Copy Link

@jeremystretch commented on GitHub (May 13, 2020):

Unfortunately the API-driven form widgets we have in place do not allow for this sort of customization. This is the sort of thing we would need a legitimate UI framework like React or Angular to support. We'll get there one day I'm sure, but it's still a long way off.

@jeremystretch commented on GitHub (May 13, 2020): Unfortunately the API-driven form widgets we have in place do not allow for this sort of customization. This is the sort of thing we would need a legitimate UI framework like React or Angular to support. We'll get there one day I'm sure, but it's still a long way off.
