Feed Legs not created/displayed in PDU Devices #2875

New Issue
Closed
opened 2025-12-29 18:22:59 +01:00 by adam · 1 comment
adam commented 2025-12-29 18:22:59 +01:00
Owner
Copy Link

Originally created by @clatini on GitHub (Sep 15, 2019).

Environment

  • Python version: 3.7.3
  • NetBox version: 2.6.3

Steps to Reproduce

  1. Define a Power Feed 'Feed1' (for example: 380V, 16A, Three-Phase);
  2. Define a new Device Type 'Test PDU' adding a Power Port 'Input1' with maximum draw of 11600W and a number of outlets associated to the three legs (for example: 12 for Leg A, 12 for Leg B, 12 for Leg C);
  3. Create a new device 'PDU1' with 'Device Role 'PDU' using the Device Type template previously created;
  4. Attach the Power Port 'Input1' to the feed 'Feed1';

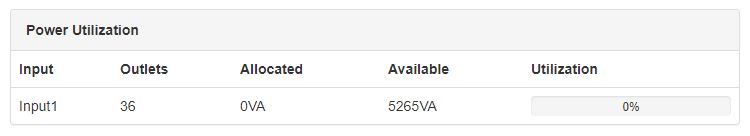

The 'Power Utilization' box doesn't show the Feed Legs.

1

Expected Behavior

Same as Netbox 2.6.2, after attaching the feed to the PDU Power Port, the Feed Legs are displayed in the 'Power Utilization' box.

2

Originally created by @clatini on GitHub (Sep 15, 2019). <!-- NOTE: This form is only for reproducible bugs. If you need assistance with NetBox installation, or if you have a general question, DO NOT open an issue. Instead, post to our mailing list: https://groups.google.com/forum/#!forum/netbox-discuss Please describe the environment in which you are running NetBox. Be sure that you are running an unmodified instance of the latest stable release before submitting a bug report. --> ### Environment * Python version: 3.7.3 * NetBox version: 2.6.3 <!-- Describe in detail the exact steps that someone else can take to reproduce this bug using the current stable release of NetBox (or the current beta release where applicable). Begin with the creation of any necessary database objects and call out every operation being performed explicitly. If reporting a bug in the REST API, be sure to reconstruct the raw HTTP request(s) being made: Don't rely on a wrapper like pynetbox. --> ### Steps to Reproduce 1. Define a Power Feed 'Feed1' (for example: 380V, 16A, Three-Phase); 2. Define a new Device Type 'Test PDU' adding a Power Port 'Input1' with maximum draw of 11600W and a number of outlets associated to the three legs (for example: 12 for Leg A, 12 for Leg B, 12 for Leg C); 3. Create a new device 'PDU1' with 'Device Role 'PDU' using the Device Type template previously created; 4. Attach the Power Port 'Input1' to the feed 'Feed1'; The 'Power Utilization' box doesn't show the Feed Legs. ![1](https://user-images.githubusercontent.com/2264300/64914407-ede3de00-d750-11e9-8045-c2f172de450d.JPG) <!-- What did you expect to happen? --> ### Expected Behavior Same as Netbox 2.6.2, after attaching the feed to the PDU Power Port, the Feed Legs are displayed in the 'Power Utilization' box. ![2](https://user-images.githubusercontent.com/2264300/64914409-048a3500-d751-11e9-9fb7-54cf931c5516.JPG)
adam closed this issue 2025-12-29 18:22:59 +01:00
adam commented 2025-12-29 18:23:00 +01:00
Author
Owner
Copy Link

@jeremystretch commented on GitHub (Sep 18, 2019):

This is happening because you've manually defined a maximum aggregate draw for the power port. If you remove that, NetBox will dynamically calculate the draw per leg based on connected outlets.

@jeremystretch commented on GitHub (Sep 18, 2019): This is happening because you've manually defined a maximum aggregate draw for the power port. If you remove that, NetBox will dynamically calculate the draw per leg based on connected outlets.
