Connect on patchpanel is not possible to Console (Server) Ports #2735

New Issue
Closed
opened 2025-12-29 18:21:34 +01:00 by adam · 2 comments
adam commented 2025-12-29 18:21:34 +01:00
Owner
Copy Link

Originally created by @dxks on GitHub (Jul 10, 2019).

Environment

  • Python version: 3.6.8
  • NetBox version: 2.6.1

Steps to Reproduce

  1. Create a Patchpanel with Frontports
  2. Click on connect icon and you can only select Interface, Front/Rear Port, Circuit Termination

Expected Behavior

Connection to/from Console-Porst can also be initiated starting with the patchpanel as RJ45 is a normal style of console-ports and cross-rack connections are always possible.

Observed Behavior

Connections can only be initiated from the console-server or the device itself. Doing a documentation step-by-step (hopping from device to console server) is not possible at all.

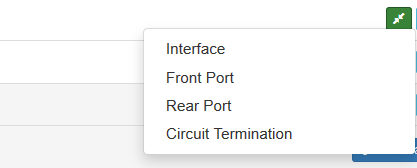

Connection on patchpanel:
connecti-selection-panel

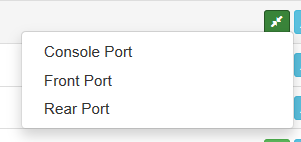

Connection on Console-Server:
connecti-selection-conserver

Originally created by @dxks on GitHub (Jul 10, 2019). ### Environment * Python version: 3.6.8 * NetBox version: 2.6.1 ### Steps to Reproduce 1. Create a Patchpanel with Frontports 2. Click on connect icon and you can only select Interface, Front/Rear Port, Circuit Termination ### Expected Behavior Connection to/from Console-Porst can also be initiated starting with the patchpanel as RJ45 is a normal style of console-ports and cross-rack connections are always possible. ### Observed Behavior Connections can only be initiated from the console-server or the device itself. Doing a documentation step-by-step (hopping from device to console server) is not possible at all. Connection on patchpanel: ![connecti-selection-panel](https://user-images.githubusercontent.com/44632742/60949863-5bf5ca00-a2f6-11e9-92cd-c620689df774.PNG) Connection on Console-Server: ![connecti-selection-conserver](https://user-images.githubusercontent.com/44632742/60949862-5b5d3380-a2f6-11e9-995d-7eb478d2685e.PNG)
adam added the type: bugstatus: accepted labels 2025-12-29 18:21:34 +01:00
adam closed this issue 2025-12-29 18:21:34 +01:00
adam commented 2025-12-29 18:21:34 +01:00
Author
Owner
Copy Link

@DanSheps commented on GitHub (Jul 10, 2019):

Looks like it may have been something missed. Will look into it and get back to you.

@DanSheps commented on GitHub (Jul 10, 2019): Looks like it may have been something missed. Will look into it and get back to you.
adam commented 2025-12-29 18:21:34 +01:00
Author
Owner
Copy Link

@kobayashi commented on GitHub (Oct 14, 2019):

Taking a look at templates, This needs to add a line at line 65-71 in /netbox/netbox/templates/dcim/inc/frontport.html .

<li><a href="{% url 'dcim:frontport_connect' termination_a_id=frontport.pk termination_b_type='console-port' %}?return_url={{ device.get_absolute_url }}">Console Port</a></li>
@kobayashi commented on GitHub (Oct 14, 2019): Taking a look at templates, This needs to add a line at line 65-71 in /netbox/netbox/templates/dcim/inc/frontport.html . ``` <li><a href="{% url 'dcim:frontport_connect' termination_a_id=frontport.pk termination_b_type='console-port' %}?return_url={{ device.get_absolute_url }}">Console Port</a></li> ```
